OMB SDW 35 – 100 W for ignitors CSLS (Philips)

SON SDW-T special lamp

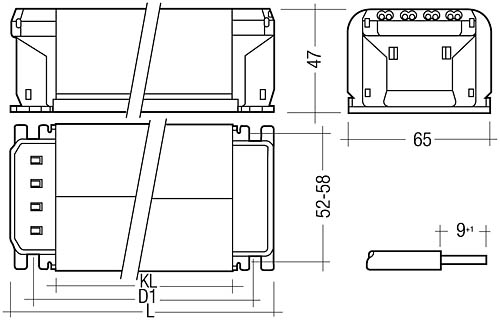

  • Fig. 1

    Fig. 1

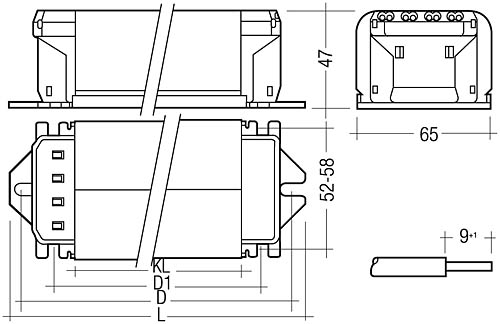

  • Fig. 2

    Fig. 2

  • Fig. 1

    Fig. 1

  • Fig. 2

    Fig. 2

Product description

  • Magnetic chokes
  • For Philips SON-SDW lamps
  • Operation on Philips CSLS control unit
  • Chokes with reversible thermal cutout: trigger temperature 155 °C
Autoscroll for tables
Ordering data
Type Article number Figure Packaging, carton Packaging, pallet Weight per pcs.
OMB SDW 35 B153W 220-240/50 035A071T 20823181 2 10 pieces 480 pieces 0.9 kg
OMB SDW 50 B153W 220-240/50 040A076T 20881229 1 10 pieces 480 pieces 1.0 kg
OMB SDW 100 B153W 220-240/50 075A111T 20823207 2 10 pieces 480 pieces 1.7 kg
Lamp types:
HST
Approval marks:
CE
ENEC
RoHs
Technical data
Max. winding temperature tw 130 °C
Push-in terminal 0.75 – 2.5 mm²
Autoscroll for tables
Specific technical data
Lamp wattage Lamp type Rated lamp current Type Article number Figure Voltage Mains frequency EEI Thermal protection Length L Fixing dimensions Core length KL ΔT Losses
Hole spacing D Hole spacing D1
35 W HS 0.48 A OMB SDW 35 B153W 20823181 2 220 / 230 / 240 V 50 Hz A2 yes 71 mm – 55 mm 35 mm 50 K 6.2 W
50 W HS 0.78 A OMB SDW 50 B153W 20881229 1 220 / 230 / 240 V 50 Hz A3 yes 102 mm 85 – 94 mm 60 mm 50 mm 65 K 9.5 W
100 W HS 1.35 A OMB SDW 100 B153W 20823207 2 220 / 230 / 240 V 50 Hz A3 yes 111 mm – 95 mm 75 mm 55 K 12.7 W
