EC 18 – 28 W

230 V 50 Hz

Product description

  • Magnetic chokes for fluorescent lamps
  • Encapsulated for protection class II applications
  • Double insulated
  • Irreversible thermal cutout
Autoscroll for tables
Ordering data
Type Article number Packaging, carton Packaging, pallet Weight per pcs.
Energy Efficiency Index EEI = B2
EC 18 LC201B 230/50 ZIMP113 22149220 26 pieces 936 pieces 0.55 kg
Lamp types:
T8
TC-D
TC-DD
Approval marks:
VDE
CE
ENEC
RoHs
Technical data
Rated voltage 230 V, 50 Hz
Max. winding temperature tw 130 °C
Push-in terminal 0.5 – 1.5 mm² for rigid wires
Trigger value, thermal protection 150 °C
Autoscroll for tables
Specific technical data

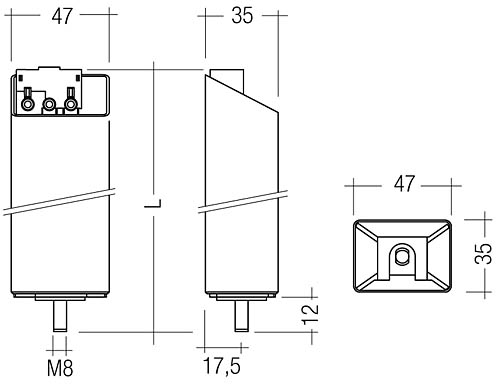

Lamp wattage Lamp type Rated lamp current Type Article number Length L Δ T λ Compensation, parallel (cos PHI > 0.9)
Capacitor ± 10 % 250 V Mains current
Energy Efficiency Index EEI = B2
1 x 18 W T8 0.370 A EC 18 LC201B 22149220 113 mm 65 K 0.32 4.5 µF 0.11 A
1 x 23 W T8 0.290 A EC 18 LC201B 22149220 113 mm 50 K 0.42 3.5 µF 0.14 A
1 x 26 W TC-D 0.325 A EC 18 LC201B 22149220 113 mm 55 K 0.43 3.5 µF 0.14 A
1 x 28 W TC-DD 0.320 A EC 18 LC201B 22149220 113 mm 55 K 0.48 3.5 µF 0.15 A
1 x 18 W TC-L 0.370 A EC 18 LC201B 22149220 113 mm 65 K 0.31 4.5 µF 0.11 A
1 x 24 W TC-L 0.345 A EC 18 LC201B 22149220 113 mm 60 K 0.40 4.0 µF 0.14 A
