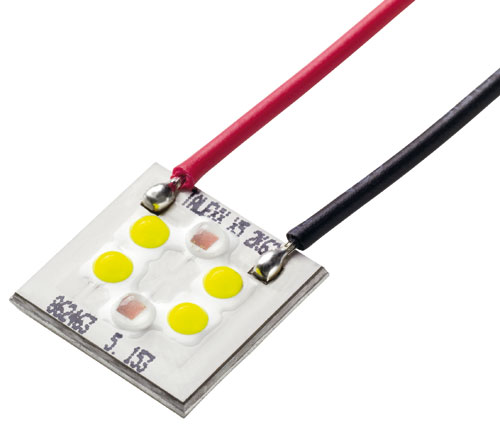

Product description

For spotlights, downlights and wallwashers (for decorative illumination)
Red-white technology
High module efficiency up to 90 lm/W at tc = 75 °C
High-flux LED module
High colour rendering index CRI ≥ 90
Compact design 14 x 14 mm or 17 x 17 mm
Excellent thermal management (1)
High-power LED in chip-on-board technology (COB)
Attached with optional mounting frame
10 minutes warm up time for steady colour value
Built-in LED module
Connection: cable 200 mm
Cooling required

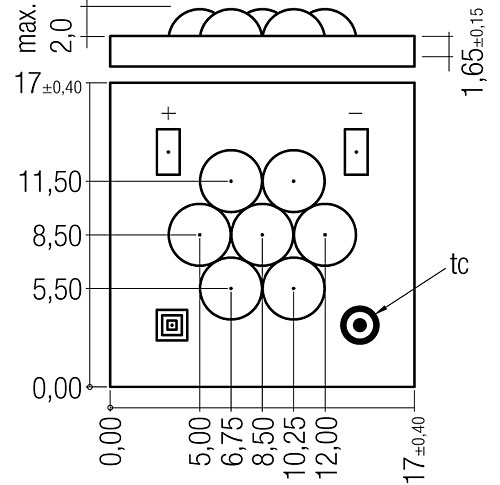

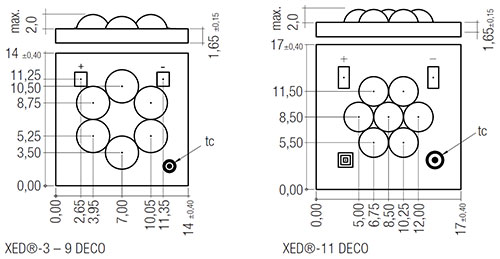

⁽¹⁾ If the max. temperature limits are exceeded, the life of the module will be greatly reduced or the module may be damaged. The temperature of the TALEXXmodule at the tc-point is to be measured in the thermally stable state with a temperature sensor or a temperature sensitive sticker according to EN 60598-1. For the precise position of the tc point see the above diagram.

Order information
Common data
Technical data
Downloads
Images
Links
Accessories
RAY
EPD

Autoscroll for tables

Ordering data
Type	Article number	Colour temperature	Packaging, carton	Weight per pcs.
XED-3 DECO 930 14X14MM CABLES	89601504	3,000 K	25 pieces	0.002 kg
XED-4 DECO 930 14X14MM CABLES	89601505	3,000 K	25 pieces	0.002 kg
XED-5 DECO 930 14X14MM CABLES	89601507	3,000 K	25 pieces	0.002 kg
XED-6 DECO 930 14X14MM CABLES	89601508	3,000 K	25 pieces	0.002 kg
XED-7 DECO 930 14X14MM CABLES	89601509	3,000 K	25 pieces	0.002 kg
XED-8 DECO 930 14X14MM CABLES	89601510	3,000 K	25 pieces	0.002 kg
XED-9 DECO 930 14X14MM CABLES	89601511	3,000 K	25 pieces	0.002 kg
XED-11 DECO 930 17X17MM CABLES	89601512	3,000 K	25 pieces	0.002 kg

Approval marks:

Technical data
Beam characteristic	140°
Ambient temperature ta	-25 ... +45 °C
Max. tc point	75 °C
Risk group (EN 62471:2008)	0

Autoscroll for tables

Specific technical data
Type	Typ. luminous flux (1)	Max. forward current (2) (3) (4)	Typ. forward voltage	Typ. power consumption module (1)	Luminous efficacy module at tc = 75 °C	Luminous efficacy module at tc = 25 °C	Colour rendering index CRI
XED-3 DECO 930 14X14MM CABLES	255 lm	350 mA	11.4 V	4.0 W	64 lm/W	75 lm/W	90
XED-4 DECO 930 14X14MM CABLES	330 lm	350 mA	13.3 V	4.7 W	71 lm/W	82 lm/W	90
XED-5 DECO 930 14X14MM CABLES	400 lm	350 mA	16.8 V	5.9 W	68 lm/W	85 lm/W	90
XED-6 DECO 930 14X14MM CABLES	460 lm	350 mA	16.8 V	5.9 W	78 lm/W	94 lm/W	90
XED-7 DECO 930 14X14MM CABLES	525 lm	500 mA	13.6 V	6.8 W	77 lm/W	95 lm/W	90
XED-8 DECO 930 14X14MM CABLES	615 lm	500 mA	16.6 V	8.3 W	74 lm/W	94 lm/W	90
XED-9 DECO 930 14X14MM CABLES	920 lm	500 mA	17.5 V	8.8 W	81 lm/W	105 lm/W	90
XED-11 DECO 930 17X17MM CABLES	1,150 lm	500 mA	21.4 V	11.8 W	75 lm/W	103 lm/W	90

⁽¹⁾ Tolerance range for optical and electrical data: ±15 %.
⁽²⁾ Exceeding the max. operating current leads to an overload on the TALEXXmodule. This may in turn result in a significant reduction in lifetime or even destruction of the TALEXXmodule.
⁽³⁾ Max. permissible surge current: 3 A, duration max. 10 µs.
⁽⁴⁾ Tolerance range current: ±5 %.

	Document	Size	Date
Download all selected files
	Data sheet	1,23 MB	21/05/2012	new
	3D data	1016,40 KB	10/01/2012

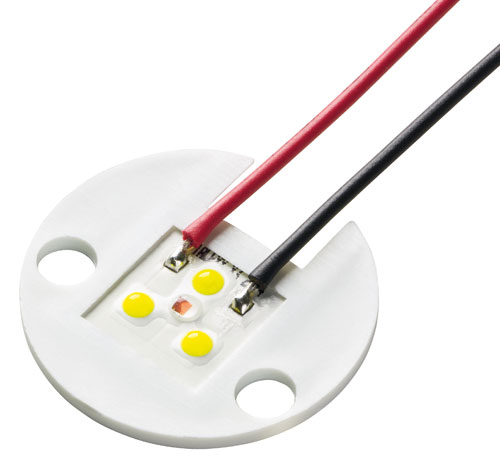

TALEXXaccessory XED Mounting Frame Accessories

Product description

Mounting frame for fastening the XED-3 to XED-9 modules on a heat sink
Recess 14 x 14 mm
Attached with M3 screws
Integrated cable implementation

Ordering data
Type	Article number	Packaging, bag
TALEXXaccessories XED Mounting Frame 14x14MM	06000331	100 pieces
