TALEXXengine STARK DLE TWIST CLASSIC NEW

TALEXXengine STARK DLE TWIST

Product description

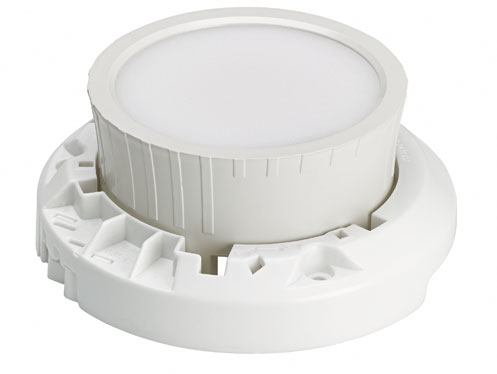

Complete LED Light Engine with integrated converter and suitable holder
High system efficiency (60 lm/W at 3,000 K and 70 lm/W at 4,000 K)
With diffuser for a uniform and neutral appearance
No tools required for installing the LED Light Engine
For luminaire installation
Long lifetime: 50,000 hours
Standardised lumen packages for precise and sustainable lighting planning
High colour rendering index CRI > 80
5-year system guarantee on the complete product

Order information
Common data
Technical data
Downloads
Images
Links
Accessories
RAY
EPD

Autoscroll for tables

Ordering data
Type (1)	Article number	Colour temperature	Packaging, carton	Weight per pcs.
STARK DLE TST F 1100 830 CLA	25000749	3,000 K	10 pieces	0.1 kg
STARK DLE TST F 1100 840 CLA	25000750	4,000 K	10 pieces	0.1 kg

⁽¹⁾ Art. nr. 25000750 available at 02/2012.

Approval marks:

Technical data
Rated supply voltage (1)	220 – 240 V
AC voltage range (1)	179 – 305 V
Mains frequency (1)	50 / 60 Hz
Typ. current	0.071 A
Typ. λ	> 0.9
Ambient temperature ta	-25 ... +40 °C
Typ. tc point (2)	65 °C
Risk group (EN 62471:2008)	0
THD	45 %
Beam characteristic	103°

⁽¹⁾ Tolerance range for optical and electrical data: ±10 %.

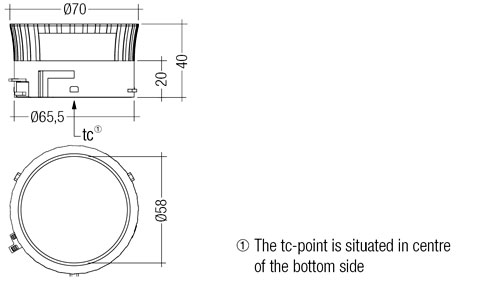

⁽²⁾ If the max. temperature limits are exceeded, the life of the module will be reduced or the module may be damaged. The temperature of the TALEXXengine at the tc-point is to be measured in the thermally stable state. For tc-point see the above diagram.

Autoscroll for tables

Specific technical data
Type (1)	Photometric code	Typ. luminous flux (2)	Power consumption light engine	Typ. efficacy of the light engine	Colour rendering index CRI
STARK DLE TST F 1100 830 CLA	830/5x9	1,100 lm	18.3 W	60 lm/W	> 80
STARK DLE TST F 1100 840 CLA	840/5x9	1,100 lm	15.5 W	70 lm/W	> 80

⁽¹⁾ Art. nr. 25000750 available at 02/2012.
⁽²⁾ Tolerance range for optical and electrical data: ±10 %.

	Document	Size	Date
Download all selected files
	Data sheet	1,28 MB	23/02/2012
	Leaflet TALEXXengine STARK DLE TWIST	1,13 MB	30/01/2012
	Alux-Luxar reflectors	5,57 MB	07/02/2012
	3D files	2,09 MB	07/02/2012

TALEXXaccessory SOCKET LH 1/2 65-2 Accessories

Product description

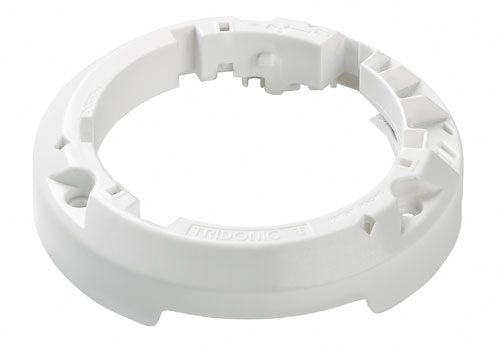

Lampholder for TALEXXengine STARK DLE TWIST
Attached with M3 cheese or button head screws
Casing: polycarbonat, white
ZHAGA code: PHJ65D-2
Rated cross section, push-in terminal: 0.5 – 1.5 mm²
Rated supply voltage: 300 V
Rated current: 2 A
Weight: 0,025 kg

Ordering data
Type	Article number	Packaging, carton	Weight per pcs.
LH 1/2 65-2	88167495	100 pieces	0.025 kg
