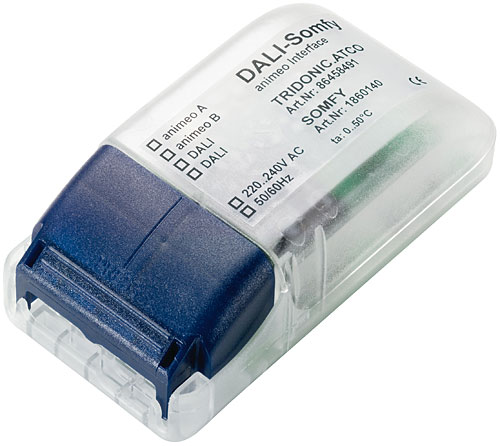

DALI Somfy animeo interface
Control module for Somfy motor control unit
Product description
- For integrating Somfy animeo IB+ motor controllers in the DALI circuit
- Lighting moods and louvre blind positions can be recalled together
- For animeo IB+ 4 AC motor controller (1860049, 1860081, 1860103, 1860108), animeo IB+ 4 DC motor controller (1860086), animeo IB+
4 DC/DC-E motor controller (1860087)
- Compatible with DALI GC-A, DALI SC and SC-A, DALI MC, DALI TOUCHPANEL 02, DALI USB, x/e-touchPANEL 02 (Version 3.00 and
higher)
- For 4 louvre blinds (4 DALI addresses therefore required)
- Support for 16 DALI groups and 16 DALI scenes
- Louvre blind is started up (e.g. travel) via the Somfy animeo IB+ motor controller
| Type |
Article number |
Packaging, carton |
|
DALI-Somfy animeo Interface
|
86458491
|
1 pieces |
| Type |
Inputs |
Outputs |
| DALI control input |
Current draw |
Number of DALI addresses |
Control output |
Output, maximum number of controllable motors |
|
DALI-Somfy animeo Interface
|
1 |
6 mA from DALI |
4 (one per motor) |
Somfy motor controller protocol |
4 |
