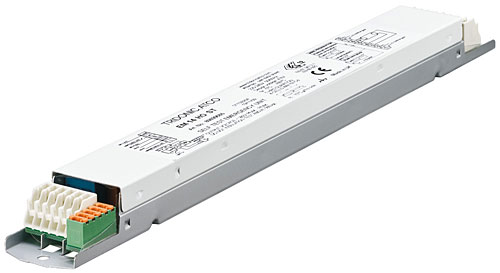

Product description

  • Emergency lighting supply unit with selftest function
  • For linear and compact fluorescent lamps

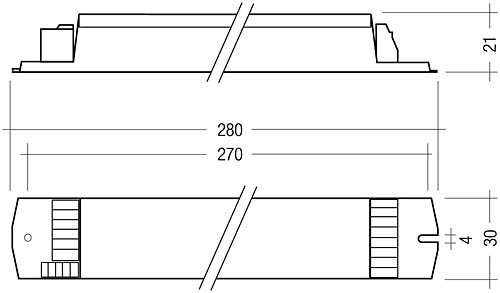

  • Low-profile casing (21 x 30 mm cross-section)

Properties

  • Selftest as per IEC 62034
  • 1or 3 h rated duration
  • Compatible with all electronic ballasts (dimmable and non-dimmable)
  • 5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
  • High-frequency ac operation of the lamp
  • Power control technology ensures maximum emergency ballast lumen factors for all lamps on a given module
  • Hot restart in emergency mode
  • Gentle on the lamp thanks to permanent cathode heating in emergency mode
  • 55 s Boost start for rapid heating of the lamp, more light in the startup phase and optimum lamp life
  • Standard and high ballast lumen factor for 1-hour types
  • Electronic multi-level charge system
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery
  • “Rest mode” function
  • Simple set-up
  • Automatic function and service life test at a risk-free time
  • Two-colour status display LED
  • Selftest:
  • Status of the battery
  • Status of the lamp
  • Charge condition
  • Function test
  • Service life test

Batteries

  • High-temperature cells
  • NiCd or NiMH batteries
  • D or Cs cells
  • Blade terminals for simple connection
  • Order information
  • Common data
  • Technical data
  • Downloads
  • Images
  • Links
  • Accessories




Ordering data
Number of cellsTypeArticle number
Rated operating time 3 h, Standard BLF
4EM 34 ST89899680
5EM 35 ST89899681
6EM 36 ST89899682
Rated operating time 1 h, Standard BLF
4EM 14 ST89899683
5EM 15 ST89899684
6EM 16 ST89899685
Rated operating time 1 h, High Output BLF
4EM 14 HO ST89899686
5EM 15 HO ST89899687
6EM 16 HO ST89899688

Packaging: 25 pieces/carton, 475 pieces/pallet

Ordering data
Number of cellsTypeArticle number
Rated operating time 3 h, Standard BLF
4EM 34 ST89899680
5EM 35 ST89899681
6EM 36 ST89899682
Rated operating time 1 h, Standard BLF
4EM 14 ST89899683
5EM 15 ST89899684
6EM 16 ST89899685
Rated operating time 1 h, High Output BLF
4EM 14 HO ST89899686
5EM 15 HO ST89899687
6EM 16 HO ST89899688

Packaging: 25 pieces/carton, 475 pieces/pallet

Lamp types:
T5T8TC-DELTC-FTC-DDT5-R

Approval marks:
CEENECN375RoHs

Technical data
Rated supply voltage220 – 240 V
Mains frequency50 / 60 Hz
Mains current60 mA, max.
Rated power< 10 W
Overvoltage protection320 V (for 1 h)
Maximum operating voltage (U-OUT of the ECG)460 V
Battery charging time 3 / 1 h15 / 10 h
Discharge current, Standard BLF1.1 A
Discharge current, High Output BLF2.2 A
Leakage current (PE)< 0.5 mA
Ambient temperature ta-5 ... +60 °C
Max. casing temperature tc70 °C
Mains voltage changeover thresholdaccording to EN 60598-2-22
Min. lamp starting temperature (emergency mode)-5 °C
Type of protectionIP20
Protection classI
Rest mode max. number of emergency units100
Rest mode max. wiring distance1,000 m
Specific technical data
TypeBattery charge timeCharge current
Initial chargeFast chargeTrickle charge
Rated operating time 3 h, Standard BLF
EM 34 ST15 h330 mA330 mA130 mA
EM 35 ST15 h330 mA330 mA130 mA
EM 36 ST15 h330 mA330 mA130 mA
Rated operating time 1 h, Standard BLF
EM 14 ST10 h130 mA210 mA50 mA
EM 15 ST10 h130 mA210 mA50 mA
EM 16 ST10 h130 mA210 mA50 mA
Rated operating time 1 h, High Output BLF
EM 14 HO ST15 h330 mA330 mA130 mA
EM 15 HO ST15 h330 mA330 mA130 mA
EM 16 HO ST15 h330 mA330 mA130 mA
