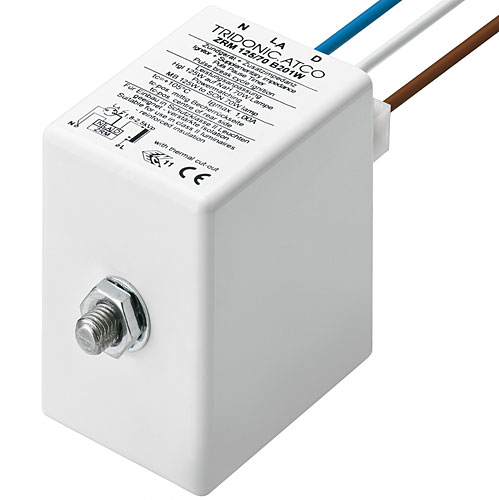

ZRM B201W

High-pressure mercury vapour lamp conversion kits

Product description

  • Integrated reversible thermal controller
  • Premounted connecting cable 3 x 1 mm², 8 mm stripped with end sleeves, 500 mm long, double insulation for protection class II applications
  • Protection class II compatible with the use of terminal cover and cable ties
  • Integrated digital superimposed-pulse ignitor with automatic disconnection
  • Pulse/pause ignition: Shorter restart times, minimum downtime
  • Suppression of the cycling effect with 3-start counter
  • Automatic reset (< 1 s)
Autoscroll for tables
Ordering data
Type Article number Packaging, carton Packaging, pallet Weight per pcs.
Standard ignitor
ZRM 80/50 B201W 22175203 30 pieces 720 pieces 0.54 kg
ZRM 125/70 B201W 22175204 30 pieces 720 pieces 0.54 kg
Lamp types:
HST
Approval marks:
CE
ENEC
RoHs
Technical data
Max. casing temperature 105 °C
Min. ambient temperature -30 °C
Autoscroll for tables
Specific technical data
Type Article number Permitted input voltage Mains frequency Max. permitted lamp current Temper­ature rise Ignition voltage Losses Upgrade kit from high-pressure mercury to high-pressure sodium vapour lamps Permitted load capacitance Max. cable length to lamp
Standard ignitor
ZRM 80/50 B201W 22175203 198 – 264 V 50 / 60 Hz 0.76 A ~ 27 K 1.8 – 2.5 kVp ~ 3.6 W HM 80 to HS 50 W 200 pF 3 m
ZRM 125/70 B201W 22175204 198 – 264 V 50 / 60 Hz 1.00 A ~ 50 K 1.8 – 2.5 kVp ~ 8.7 W HM 125 to HS 70 W 200 pF 3 m
Document      Size       Date
Download selected files Download selected files
DS_ZRM_A201W_B201W_en.pdf
Data sheet 		334,70 KB 01/01/2010
