- EM MINI BASIC, 220 – 240 V
EM MINI BASIC, 220 – 240 V 50/60 Hz
BASIC version
Product description
- Emergency lighting supply unit for manual testing
- For compact fluorescent lamps

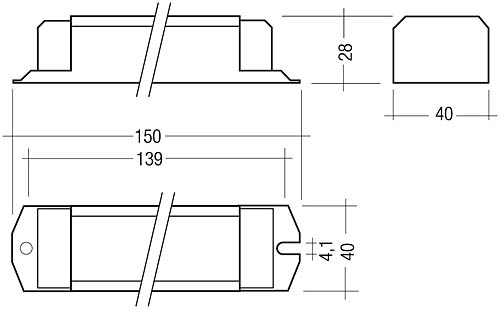

- Small dimensions (28 x 40 mm cross-section, 150 mm length)
Properties
- 3 h rated duration
- Compatible with all electronic ballasts (dimmable and non-dimmable)
- Can also be used in combination with conventional magnetic ballasts
- 5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
- Switchover relay with high-current contacts
- IDC (insulation displacement connection)
- Green charge status display LED
- Checking the emergency lighting function by interrupting the unswitched phase
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery
Batteries
- High-temperature cells
- NiCd or NiMH batteries
- D or Cs cells
- Blade terminals for simple connection
| Ordering data | |||||
|---|---|---|---|---|---|
| Type | Article number | Number of cells | Packaging, carton | Packaging, pallet | Weight per pc. |
| Rated operating time 3 h | |||||
| EM 33A MINI BASIC | 89899951 | 3 | 25 pc(s). | 1,000 pc(s). | 0.155 kg |
| EM 34A MINI BASIC | 89899950 | 4 | 25 pc(s). | 1,000 pc(s). | 0.155 kg |
| EM 34C MINI BASIC | 89899952 | 4 | 25 pc(s). | 1,000 pc(s). | 0.155 kg |
- Lamp types:
-
-
-
-
- Approval marks:
-
-
-
-
| Technical data | |
|---|---|
| Rated supply voltage | 220 – 240 V |
| Mains frequency | 50 / 60 Hz |
| Mains current | 0.03 A |
| Rated power | 3.9 W |
| Battery charging time | 24 h |
| Discharge current | 1.1 A A |
| Charge current | 210 mA |
| Leakage current (PE) | 0.5 mA |
| Ambient temperature ta | 0 ... +50 °C |
| Max. casing temperature tc | 70 °C |
| Mains voltage changeover threshold | according to EN 60598-2-22 |
| Min. lamp starting temperature (emergency mode) | – |
| Type of protection | IP20 |
| Protection class | I |
Further information
- FAQ – Emergency lighting units (http://www.tridonic.com/com/en/faq-emergency.asp)
- Reference projects (http://www.tridonic.com/com/en/reference-projects.asp)
- Certificates (http://www.tridonic.com/com/en/certificates-emergency.asp)
- Declarations of conformity (http://www.tridonic.com/com/en/declarations-of-conformity.asp)
- Environmental declarations (http://www.tridonic.com/com/en/environmental-declarations.asp)
Status indication green LED Accessories
- Approval marks:
-
Product description
- A green LED indicates that charging current is flowing into the battery
- Plug connection
| Ordering data | ||||
|---|---|---|---|---|
| Type | Article number | Packaging, bag | Packaging, carton | Weight per pc. |
| LED EM green | 89899605 | 25 pc(s). | 200 pc(s). | 0.011 kg |
| LED EM green, ultra high brightness | 89899756 | 25 pc(s). | 800 pc(s). | 0.012 kg |
